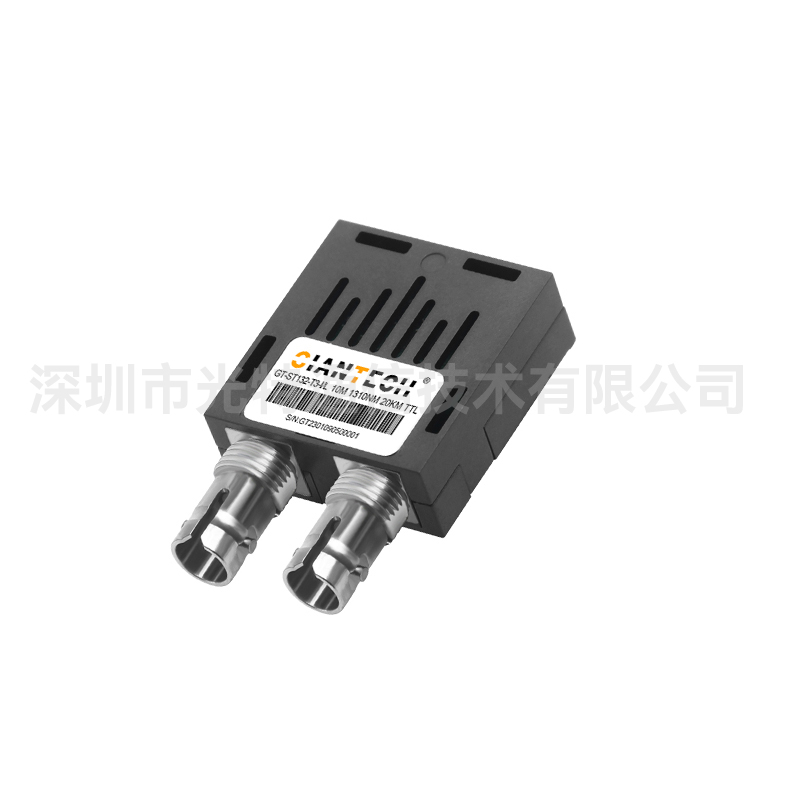

1*9光模塊 1.25G MM ST 550M-2KM螺紋+卡口

產品介紹

應用范圍

選型表

結構尺寸

資料下載

Feature：

SC/FC/ST receptacle optical interface and pigtail optical interface

Multi-mode Duplex fibers optical transceiver

+3.3V Power Supply

Standard PECL data output with signal detect indication

Multi-sourced 1×9 package

High quality 1310nm FP or 850nm VCSEL

Receiver has a planner InGaAsP PIN

Application

Applied to optical fiber transmission systems,such as SDH\ATM\Gigabit Ethernet with bit rate up to 1.25Gbps

Product Model	速率 Data Rate	接頭類型 Port	單多模 Fiber	波長 Wave(nm)	傳輸距離 Distance (KM)	電壓 Voltage	信號電平 Signal Level	溫度 Temp. (℃)
GT-M2850-S*	1.25Gbps	SC	MM	MM 850nm	550M	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
GT-M2130-S*	1.25Gbps	SC	MM	MM 1310nm	2KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
GT-M2850-F*	1.25Gbps	FC	MM	MM 850nm	550M	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
GT-M2130-F*	1.25Gbps	FC	MM	MM 1310nm	2KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
GT-M2850-T*	1.25Gbps	ST	MM	MM 850nm	550M	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
GT-M2130-T*	1.25Gbps	ST	MM	MM 1310nm	2KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
根據使用場景的不同，可選以下產品 Depending on the usage scenario, you can choose from the following products:
1. 接地工業級:-40~105°C(**FC/ST) 2. 2.過EMC-CLASS A(金屬屏蔽罩+屏蔽外殼) 3. 3.LVPECL電平需第四腳TTL電平 4. 4.定制高品質FC/ST接頭光模塊(見上圖) 5. 5.雙芯片5V光模塊需要以上光模塊，可咨詢廠家					1. Grounding industrialTemperature Range: -40°C to +105°C 2. EMC-CLASS A:Metallic shield and Plastic housing. 3.LVPECL-SD:LVTTL 4.Customizable FC/ST Metallized connector 5.5v Optical Modules For more information,please contactthe manufacturer!
